Steg SS35 – 3,5″ Wideband Mellemtone

2.249,00 kr.

3,5″ Wideband mellemtone fra Steg

Varenummer (SKU): STG-SS35 Kategori: Varemærke:

Beskrivelse

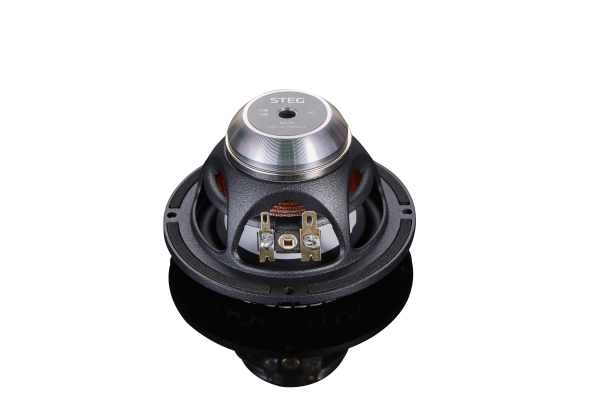

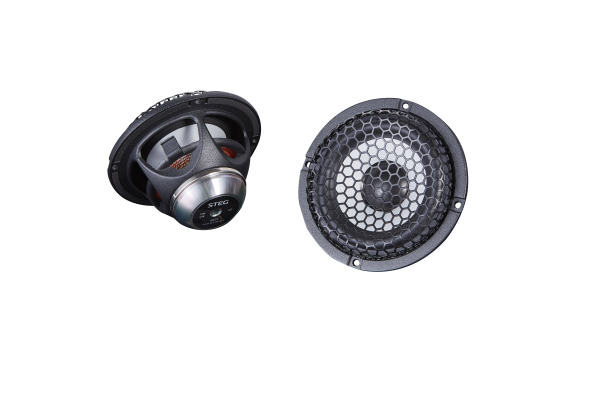

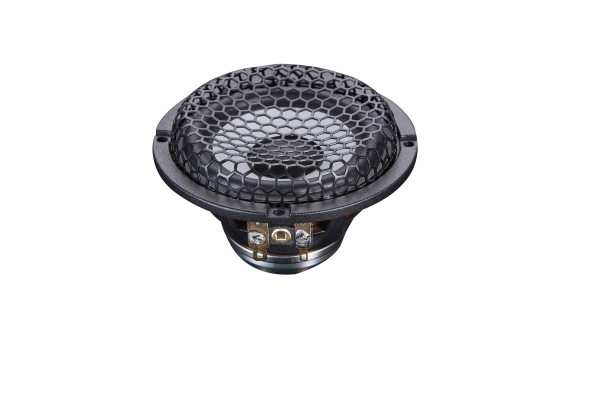

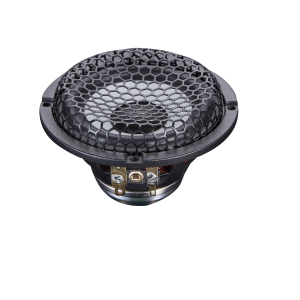

Steg SS35

The novel, ultra lightweight and fine-meshed dome with a visco-elastic Acronal coating on both sides guarantees brilliant and smooth treble response. In addition, integrating pure lamb’s wool and dampened coupling volume enables a very low resonance frequency and allows a deep acoustic coupling.
In terms of design and technology, the STEG philosophy is continued without exception:
The gentle, precious appearance reveals a number of smart details. The ultra-precise machined, 10 times ventilated neodymium magnet will generate the highest magnetic flux linearity, the integrated 24-carat gold plated terminals for maximum conductivity. Add to this the sturdy protection grille for the dome and you have a midrange like no other.
In order to meet our high quality requirements and to reach perfect tonal interaction each speaker set is hand-selected and paired according to its acoustic parameters. Only after selection, every speaker set receives its unique serial number which is recorded to a service database.

Speaker Size: 3,5″
Impedance (Z): 4Ω
DC resistance (Re): 3.4Ω
Voice coil dimension (Ø): 20.4mm
Voice coil inductance (Le): 0.15 mH
Voice coil former/VCF: KSV
Membrane material: Kapton
Magnet system (Ms): Neodymium
Net weight (Lb): 0.24kg
Transducer’s suspension (Qms): 7.53
Transducer’s suspension (Qts): 0.4
Motor strength (BL): 4.11
Centering device (Cd): N-24
Suspension cone (Sc): 70sh rubber
Resonance frequency (Fs): 100 Hz
Frequency response (Fr): 100 Hz-20 kHz
Efficiency 1 W/1m (SPL): 86 dB
Power rating/Hi-pass 1500Hz (RMS): 30W
Radiation mass load (Mms): 2.71g
Force exerted suspension (Cms): 0.38 mN
Volume air compressed (Vas): 0.26 Ltr
Surface area cone (Sd): 26.76cm2
Maximum Linear Excursion (Xmax): 1.5 mm
