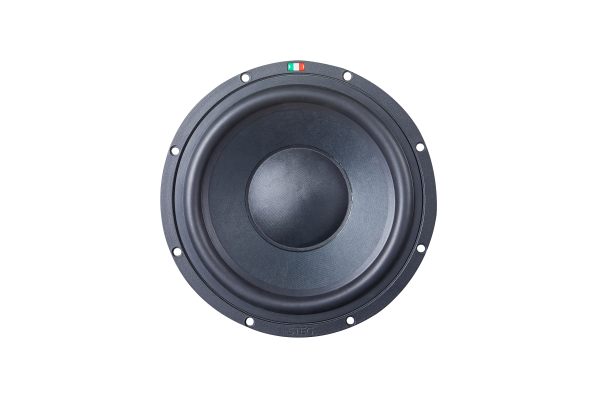

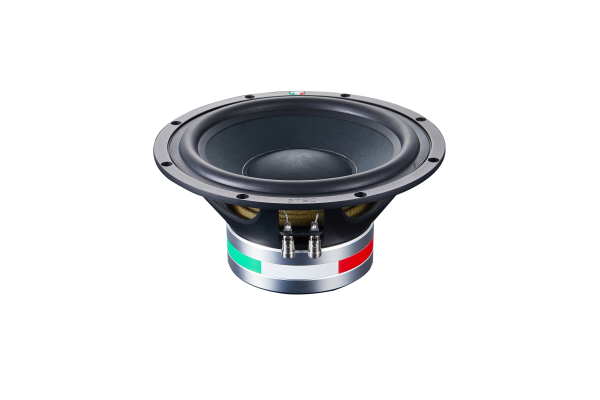

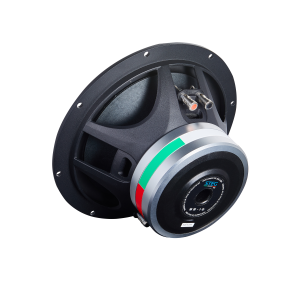

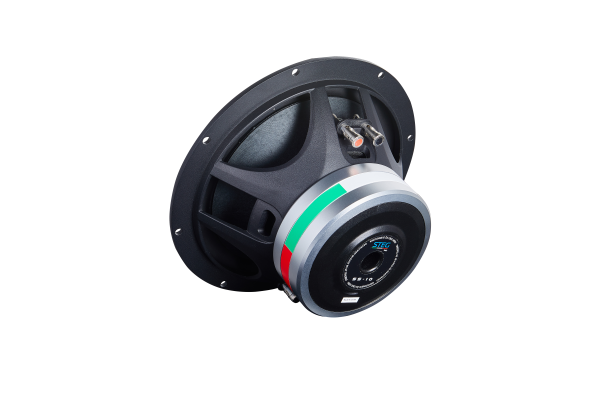

Steg SS-10 – 10″ Subwoofer Enhed
5.299,00 kr.
10″ High-end subwoofer fra Steg
- Beskrivelse
- Specifikationer
Beskrivelse
MASTER STROKE SS-10
A “state of the art” subwoofer , designed and manufactured without compromise.
The basket of all three models is milled from a solid block of aluminum,
this allows you to have no resonance, thanks to its design designed exclusively to be the first in the class, not to sin in anything, and tested with the best simulators, and to the extremely high mass. Capture the listener with its sound quality, stamp accuracy and impulsive response.
Speaker Size: 10″
Impedance (Z): 4Ω+4Ω
DC resistance (Re): 2Ω+2Ω
Voice coil dimension (Ø): 50mm
Voice coil inductance (Le): 0,75 mH+0,75 mH
Voice coil former/VCF: GFB-B
Membrane material: PMI Foam
Magnet System (Ms): Ferrite
Net weight (Lb): 5.09kg
Transducer’s suspension (Qms): 7.18
Transducer’s suspension (Qts): 0,35
Motor strength (bl): 6.95
Centering device (Cd): Konex
Suspension cone (Sc): 65sh rubber
Resonance frequency (Fs): 31 Hz
Frequency response (Fr): 25Hz-2kHz
Efficiency 1W/1m (SPL): 88dB
Power rating/Hi-pass 1500Hz (RMS max.): 250W
Radiation mass load (Mms): 90gg
Force exerted suspension (Cms): 0,29 mN
Volume air compressed (Vas): 49 Ltr
Surface area cone (Sd): 346 cmq
Maximum Linear Excursion (Xmax): 22 pp mm
