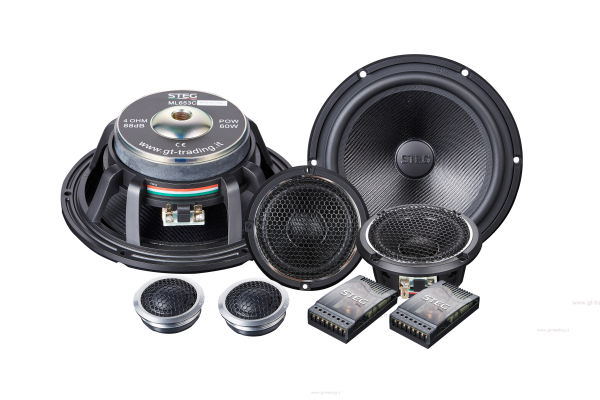

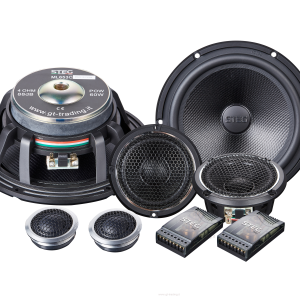

Steg ML653C – 3-Vejs 6,5″ Komponent System
5.799,00 kr.
6,5″ Komponent system fra Steg
- Beskrivelse
- Specifikationer
Beskrivelse
Steg ML653C
In terms of design and technology, the STEG philosophy is continued without exception:
The gentle, precious appearance reveals a number of smart details like the new, hemispherical shaped dust cap for an optimized frequency response in the upper midrange area, the perfectly linear magnet structure for lowest possible distortion, the multiple ventilated voice-coil for high power handling as well as the rigid and aerodynamically efficient die cast basket. Used as a provider of low-frequencies the Q65C finalizes audiophile sound concepts that are designed entirely for authentic musical reproduction and enjoyment

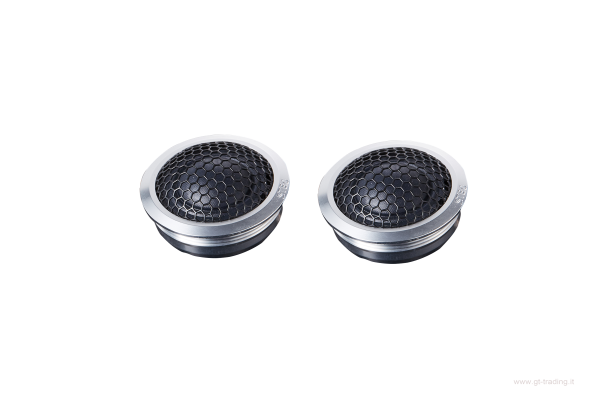

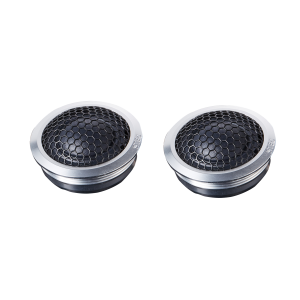

Tweeter
Cone material: Tetoron
Voice coil size: 25mm
DC impedance: 3.6Ω
Rated power input: 20W
Frequency response: 1300-22000Hz
SPL: 90dB
Weight: 92g
Mounting depth: 17mm
Mounting diameter: 47mm
Midrange
Cone material: Composite cone
Voice coil size: 25mm
DC impedance: 3.6Ω
Rated power input: 30W
Frequency response: 100-15000Hz
SPL: 85dB
Qms: 3.78
Qes: 1.13
Qts: 0.87
Vas: 1.61 Ltr
Weight: 0.225kg
Mounting depth: 41mm
Mounting diameter: 79mm

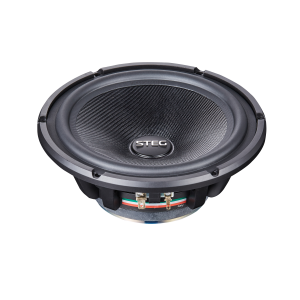

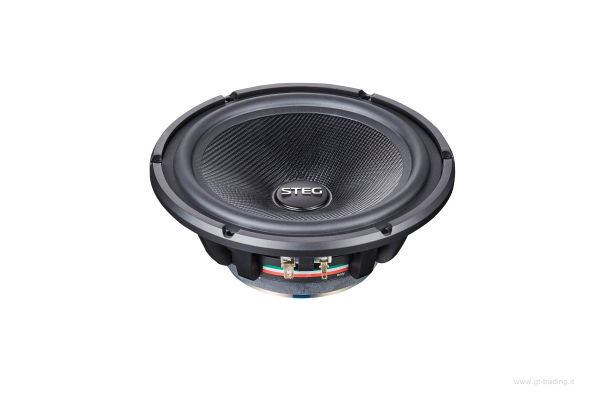

Woofer
Cone material: Composite cone
Voice coil size: 25.5mm
Rated power input: 60W
Frequency response: 65-6.5kHz
DC impedance: 3.0Ω
Fs: 65Hz
SPL: 88dB
Sd: 128.6 cm2
Bl: 4.3Tm
Qms: 4.43
Qes: 0.87
Qts: 0.72
No: 0.336%
Vas: 11 Ltr
Cms: 474.3 u M/N
Mms: 12.8g
Mmd: 11.9g
Weight: 0.91kg
Mounting depth: 64mm
Mounting diameter: 142mm
