Steg Master Stroke SS – 3-Vejs Komponent System
33.109,00 kr.
Ultra high-end komponent system fra italienske Steg
- Beskrivelse
- Specifikationer
Beskrivelse

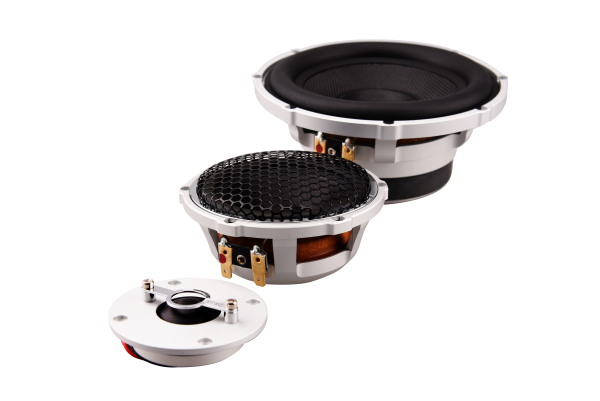

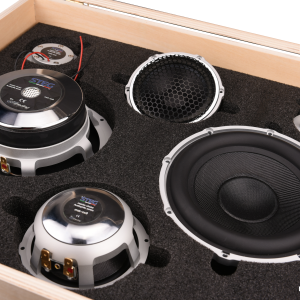

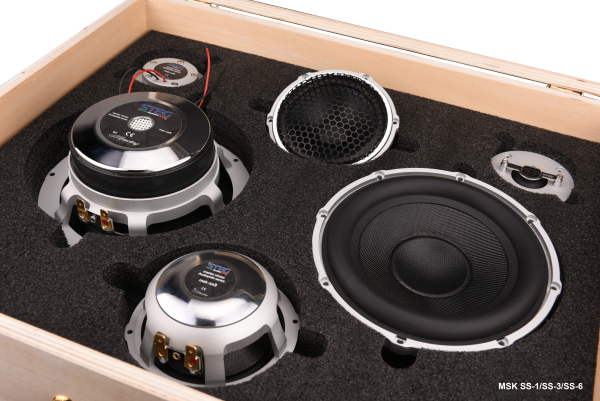

Steg SS1, SS3, SS6
The basket of all three models is milled from a solid block of aluminum,
this allows you to have no resonance, thanks to its design designed exclusively to be the first in the class, not to sin in anything, and tested with the best simulators, and to the extremely high mass. Capture the listener with its sound quality, stamp accuracy and impulsive response.
Thanks to their extremely low resonance frequency.

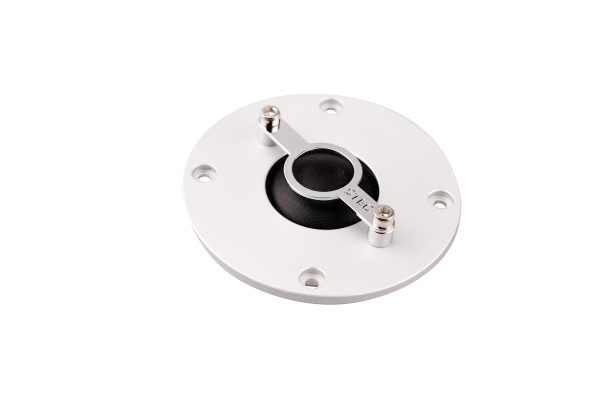

SS1 Tweeters:
Speaker Size: 2,7″
Impedance (Z): 4Ω
DC resistance (Re): 2.9 Ω
Voice coil dimension: 25.45mm
Voice coil inductance (Le): 0,1mH
Voice coil former/VCF: Aluminum avv. Class H – Copper Basket: Solid Aluminum
Dome material (Dm): Treated silk
Magnet system (Ms): Neodymium
Net weight (Lb): 0.10kg
Transducer’s suspension (Qms): 3,15
Transducer’s suspension (Qts): 0,98
Motor strength (Bl): 1,49
System (N/A): Rephased
Suspension cone (Sc): Silk
Resonance frequency (Fs): 1150 Hz
Frequency response (Fr): 1,3- 22 kHz
Efficiency 1 W/1 m (SPL): 90 dB
Power rating/Hi-pass 1500hz (RMS Min.): 30W

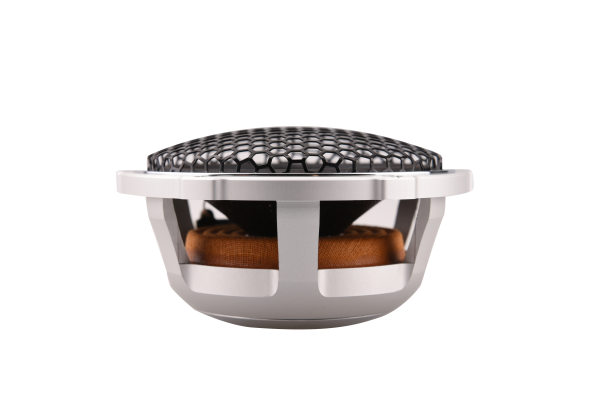

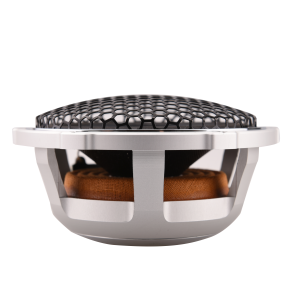

SS3 Midrange:
Speaker Size: 4″
Impedance (Z): 4Ω
DC resistance (Re): 2.9 Ω
Voice coil dimension (Ø): 25.45mm
Voice coil inductance (Le): 0,27 mH
Voice coil former/VCF: Aluminum avv. Class H – Copper Basket: Solid Aluminum
Membrane material: Glass fiber loaded with resin
Magnet system (Ms): Neodymium
Net weight (Lb): 0.45kg
Transducer’s suspension (Qms): 3,67
Transducer’s suspension (Qts): 0,89
Motor strength (Bl): 2,66
Centering device (Cd): Konex
Suspension cone (Sc): 50sh rubber
Resonance frequency (Fs): 78 Hz
Frequency response (Fr): 80 Hz – 11 kHz
Efficiency 1 W/1 m (SPL): 88 dB
Power rating/Hi-pass 1500hz (RMS Max): 70W

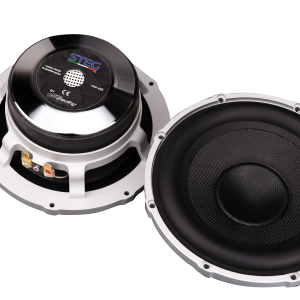

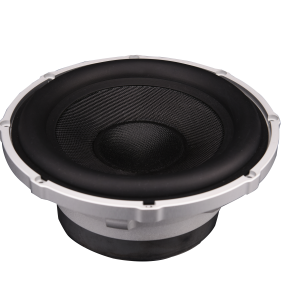

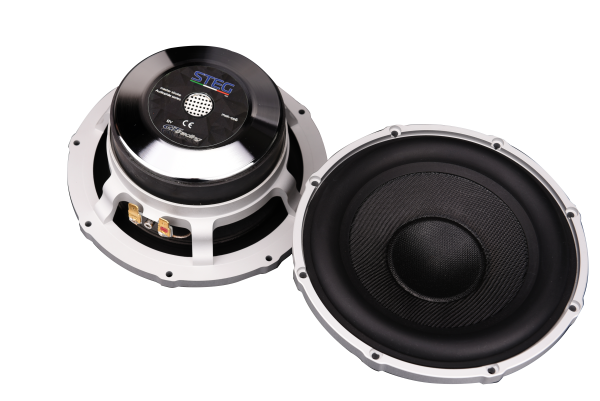

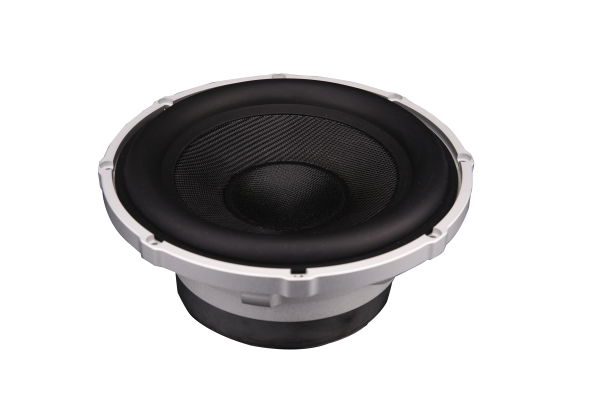

SS6 Woofer:
Speaker Size: 6.5″
Impedance (Z): 4Ω
DC resistance (Re): 2.9 Ω
Voice coil dimension (Ø): 40mm
Voice coil inductance (Le): 0,77 mH
Voice coil former/VCF: Aluminum avv. Class H – Copper Basket: Solid Aluminum
Membrane material: Glass fiber loaded with resin
Magnet system (Ms): Ferrite
Net weight (Lb): 1.7kg
Transducer’s suspension (Qms): 3,34
Transducer’s suspension (Qts): 0,52
Motor strength (Bl): 6,84
Centering device (Cd): Konex
Suspension cone (Sc): 55sh rubber
Resonance frequency (Fs): 52 Hz
Frequency response (Fr): 35Hz – 5,5kHz
Efficiency 1 W/1 m (SPL): 87 dB
Power rating/Hi-pass 1500hz (RMS Max.): 200W
