Match UP W8MB-S4 LHD – Subwoofer højttaler til Mercedes

1.899,00 kr.

8″ Bilspecifik woofer/subwoofer til Mercedes fra Match

Varenummer (SKU): MA-W8MBS4LHD Kategorier: , Varemærke:

Beskrivelse

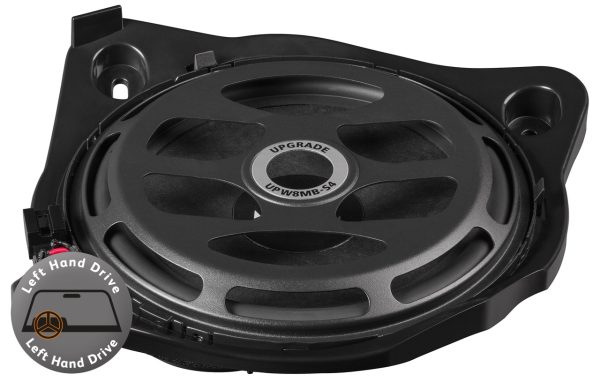

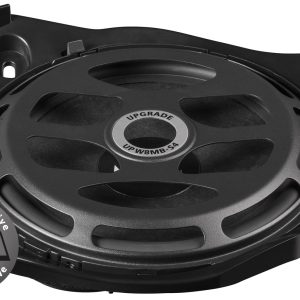

MATCH UP W8MB-S4 Single LHD

Premium cars deserve premium sound – and this includes a deep and punchy bass reproduction which the basic speaker setup in Mercedes vehicles doesn’t deliver at all. However, the perfect solution is quite simple – the heavy-duty 8” / 200 mm woofer UP W8MB-S4 fits perfectly into the original mounting positions in the bulkhead of the  co-driver side and provides exactly the right punch that you can feel and which brings music to life.
Especially in combination with one of our DSP amplifiers these subwoofers reveals their full potential in respect of dynamics.

Features

  • 8” subwoofer with Mercedes-specific basket for the installation on the co-driver side
  • Optimized sound characteristics for Mercedes vehicles for a spectacular sound in combination with significantly increased power handling
  • Exclusively developed basket and car-specific connector for Mercedes vehicles for easiest installation
  • Perfectly combinable with further MATCH UPGRADE components – e.g. DSP amplifier
  • Left hand drive version
Power RMS / max. P 100 / 200 Watts
Impedance  Z 1 x 4 Ω
DC resistance  Re  3,6 Ω
Frequency response   25 – 250 Hz
Resonance frequency  Fs 51 Hz
Mechanical Q factor  Qms 7.24
Electrical Q factor  Qes 0.71
Total Q factor Qts 0.64
Compliance Cms 276  µm/N
Equivalent air volume Vas 18 L
Force factor  B*I 7.6 Tm
Efficiency 1 W / 1 m SPL 88 dB
Cone area  Sd 216 cm²
Moving mass  Mms 35 g
Cone material   Paper cone
Mechanical resistance  Rms 1.6 kg/s
Voice coil diameter ø 37 mm
Voice coil winding height   16 mm
Max. linear excursion  Xmax +/- 5 mm

C-Klasse
Cabriolet A205 2016
Coupe C205 2015
Sedan W205 2014>
T-Model S205 2014>

E-Klasse
Cabriolet A238 2017>
Coupe C238 2017>
Sedan W213 2016>
T-Model S213 2016>

GLC-Klasse
SUV X253 2015>
SUV Coupe C253 2015>
