Match PP 8W-Q

899,00 kr.

8″ Løs subwoofer enhed fra Match

Varenummer (SKU): MA-PP8WQ Kategori: Varemærke:

Beskrivelse

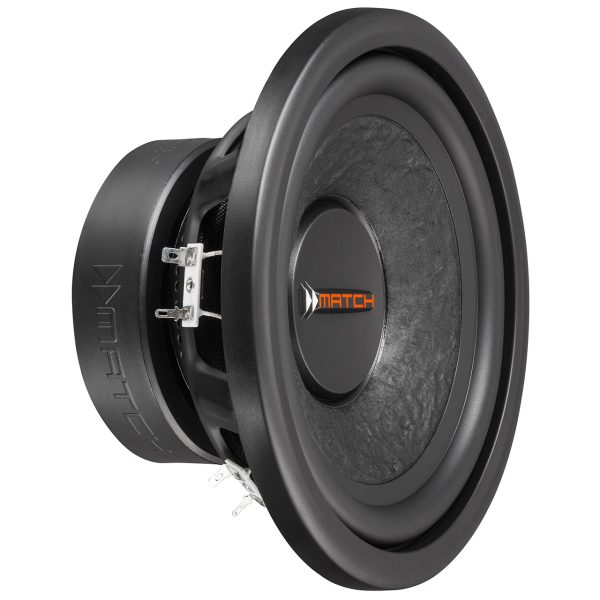

MATCH PP 8W-Q

You didn’t find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your “personalized” version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.

Features

  • 8” / 200 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
  • Extremely stiff hand-scooped paper cone for maximum sound pressure
  • Double ventilated voice coil for minimum compression effects
  • Powerful magnet for compact-sized vented enclosures
  • Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
  • Optimized for the perfect interaction with MATCH Plug & Play amplifiers
Power RMS / max. P 200 / 400 Watts
Impedance  Z 4 x 3 Ω
DC resistance  Re 4 x 2.7 Ω
Frequency response
Resonance frequency  Fs 37 Hz
Mechanical Q factor  Qms 5.40
Electrical Q factor  Qes 0.57
Total Q factor Qts 0.51
Compliance Cms 341  µm/N
Equivalent air volume Vas 23 L
Force factor  B*I 7.5 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area  Sd 222 cm²
Moving mass  Mms 53 g
Cone material   Hand-scooped paper cone
Mechanical resistance  Rms 3.3 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height   21 mm
Max. linear excursion  Xmax +/- 6.5 mm
Outer diameter ø 212 mm / 8.35″
Installation diameter ø 183 mm / 7.2″
Installation depth   105 mm / 4.1″

Recommended enclosure volumes
Sealed box    Not recommended
Net volume
Lower limiting frequency (-3dB)
DSP settings

Vented box
Net volume   10 L
Port diameter ø 60 mm / 2.36″
Port area   28 cm²
Port length   25 cm / 9.84″
Port tuning frequency Fb 47 Hz
Lower limiting frequency (-3dB)   45 Hz
