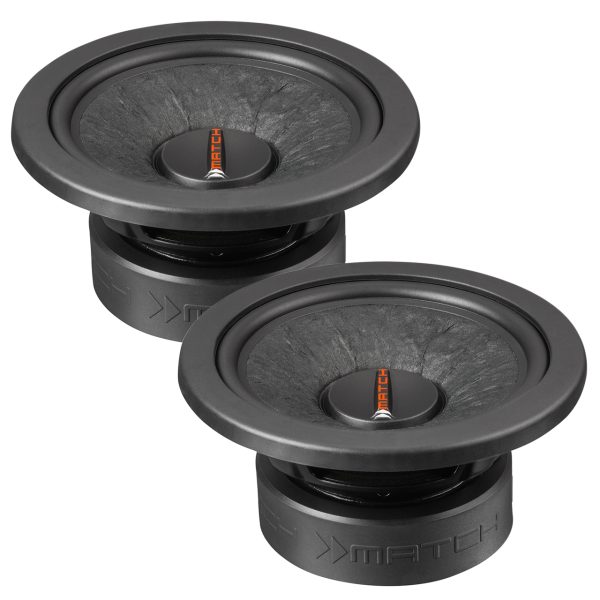

Match PP 72W-D – 6,5″ Løse Subwoofere (Sæt)

949,00 kr.

6,5″ Subwoofer sæt fra Match

Varenummer (SKU): MA-PP72WDS Kategori: Varemærke:

Beskrivelse

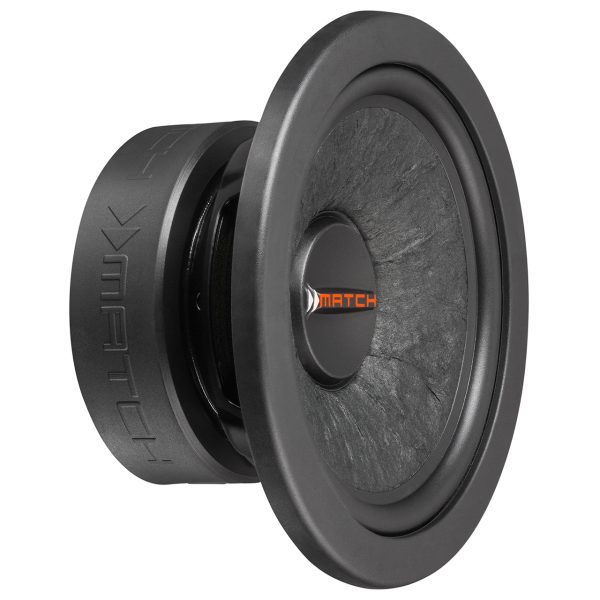

MATCH PP 72W-D

You didn’t find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your “personalized” version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.

Features

  • Extremely stiff, hand-scooped paper cones
  • High-temperature resistant voice coils with large winding heights
  • Double ventilated voice-coils for minimum compression effects
  • Powerful magnets for compact-sized vented enclosures
  • Optimized for the perfect interaction with MATCH Plug & Play amplifiers

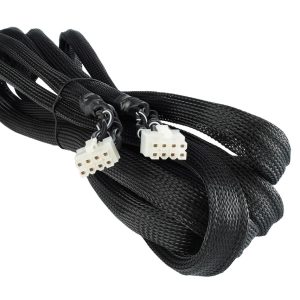

  • Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
Power RMS / max. P 100 / 200 Watts
Impedance  Z 2 x 2 Ω
DC resistance  Re 2 x 1.6 Ω
Resonance frequency  Fs 53 Hz
Mechanical Q factor  Qms 3.30
Electrical Q factor  Qes 0.41
Total Q factor Qts 0.37
Compliance Cms 350  µm/N
Equivalent air volume Vas 7.9 L
Force factor  B*I 8 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area  Sd 125 cm²
Moving mass  Mms 25 g
Cone material   Hand-scooped paper cone
Mechanical resistance  Rms   2.5 kg/s
Voice coil diameter ø 38.8 mm
Voice coil winding height   16 mm
Max. linear excursion  Xmax +/- 5.0 mm
Outer diameter ø 157.5 mm / 6.20″
Installation diameter ø 133 mm / 5.24″
Installation depth   79 mm / 3.11″

Recommended enclosure volumes  For two subwoofers
Sealed box    Not recommended
Net volume
Lower limiting frequency (-3dB)

Vented box
Net volume   15 L
Port diameter ø 70 mm / 2.76″
Port area   38 cm²
Port length   20 cm / 7.87″
Port tuning frequency Fb 50 Hz
Lower limiting frequency (-3dB)   48 Hz
