Match MW8BMW-D – Subwoofer sæt til BMW og Mini
3.199,00 kr.
8″ Bilspecifikke woofere/subwoofere til BMW og MINI fra Match
- Beskrivelse
- Specifikationer
- Kompatible Bilmodeller
Beskrivelse

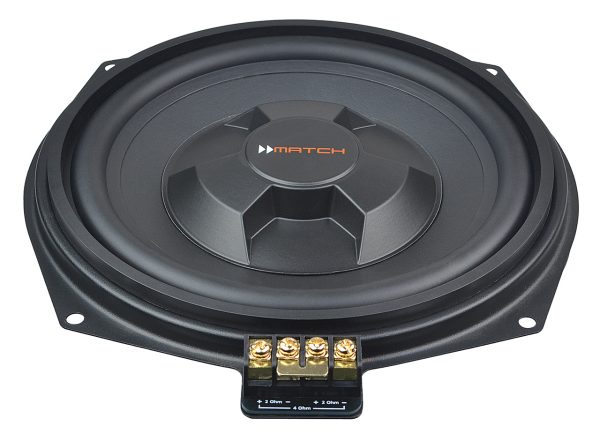

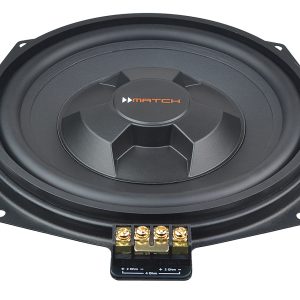

MATCH MW 8BMW-D
The MW 8BMW-D subwoofers are not only the ideal upgrade for those who are dissatisfied with the bass response in their BMW, but particularly for those who want to realize unprecedented space saving installation concepts.
The BMW-specific baskets and Plug & Play connectors allow a fast and easy installation into the original mounting positions of all BMW model ranges with under-seat subwoofers.
Nevertheless, these subwoofers are also perfectly qualified for universal applications. Thanks to the very low mounting depth, extremely compact sealed enclosures are no problem at all whereas the oversized 1.7” / 42.5 mm voice coil assures high power handling.
Furthermore, the special speaker connector with its gold-plated screw terminals allows two different configurations. If the metal bracket is mounted the woofer has an impedance of 1 x 4 Ohms – without the metal bracket each voice coil can be driven separately (in this case 2 x 2 Ohms) which is perfect for the combination with MATCH Plug & Play amplifiers.
No matter if these subwoofers are used as bass upgrade in your BMW or as problem-solver in small sub enclosures, they will definitely add loads of powerful bass for musical enjoyment.
Features
- 8” subwoofers with very low mounting depth for shallow subwoofer designs and under-seat installation in BMW vehicles
- Allows to use extremely compact, sealed enclosures
- Oversized 42.5 mm / 1.7” voice coil for high power handling
- 2 x 2 Ohms impedance per woofer for most flexible connection options

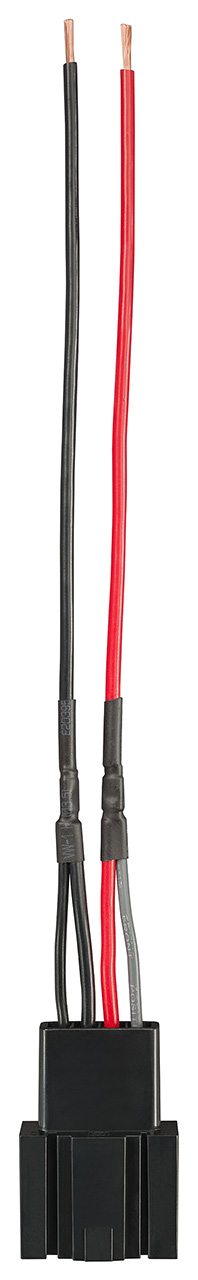

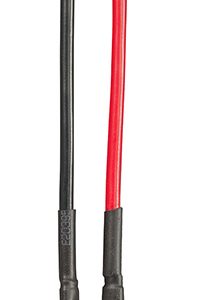

- Plug connectors for original BMW cable harness are included in delivery

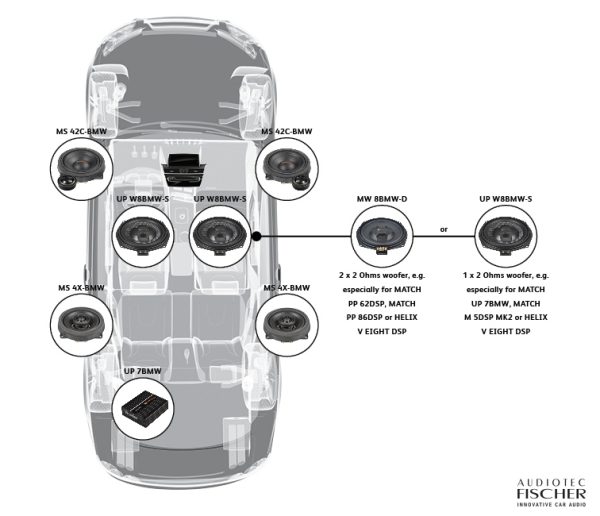

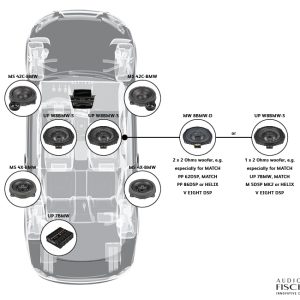

- Fits directly into the original mounting positions under the front seats of all BMW model ranges with under-seat subwoofers
- Also ideal for universal use in ultra-flat subwoofer constructions
Special features:
Switch it parallel

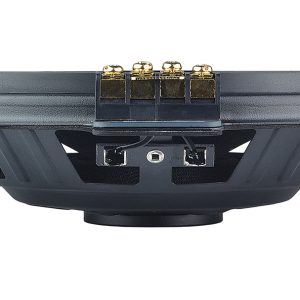

The speaker connector with its gold-plated screw terminals allows two different configurations. If the metal bracket is mounted the woofer has an impedance of 1 x 4 Ohms. Without the metal bracket each voice coil can be driven separately (impedance in this case 2 x 2 Ohms) which guarantees a perfect interaction with MATCH Plug & Play amplifiers.
| Power RMS / max. | P | 200 / 400 Watts | |
| Impedance | Z | 2 x 2 Ω | |
| DC resistance | Re | 3.4 Ω | |
| Resonance frequency | Fs | 46 Hz | |
| Mechanical Q factor | Qms | 4.45 | |
| Electrical Q factor | Qes | 0.59 | |
| Total Q factor | Qts | 0.52 | |
| Compliance | Cms | 272 µm/N | |
| Equivalent air volume | Vas | 17.3 L | |
| Force factor | B*I | 8.6 Tm | |
| Efficiency 1 W / 1 m | SPL | 90 dB | |
| Cone area | Sd | 214 cm² | |
| Moving mass | Mms | 44.2 g | |
| Cone material | Hand-scooped paper cone | ||
| Mechanical resistance | Rms | 0.74 kg/s | |
| Voice coil diameter | ø | 42.5 mm | |
| Voice coil winding height | 12.5 mm | ||
| Max. linear excursion | Xmax | +/- 4.0 mm | |
| Outer diameter | ø | 239 mm / 9.41″ | |
| Installation diameter | ø | 175 mm / 6.89″ | |
| Installation depth | 40 mm / 1.57″ | ||
| Recommended enclosure volumes | |||
| Sealed box | |||
| Net volume | 3 L | ||
| Lower limiting frequency (-3dB) | 63 Hz | ||
| DSP settings | – Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz – Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB – Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 – 100 Hz |
||
| Vented box | For one subwoofer | For two subwoofers | |
| Net volume | 12 L | 24 L | |
| Port diameter | ø | 60 mm / 2.36″ | 80 mm / 3.15 |
| Port area | 28 cm² | 50 cm² | |
| Port length | 25 cm / 9.84″ | 20 cm / 3.94″ | |
| Port tuning frequency | Fb | 46 Hz | 46 Hz |
| Lower limiting frequency (-3dB) | 45 Hz | 45 Hz | |
| DSP settings | – Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3 – Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB – Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 – 100 Hz |
||
BMW:
1-Serie
E81 3-dørs 2007-2012
E82 Coupe 2007-2013
E87 5-dørs 2007-2011
E88 Cabriolet 2004-2011
F20 5-dørs 2011>
F21 3-dørs 2012>
F40 5-dørs 2019>
F52 Sedan 2019>
2-Serie
F22 Coupe 2015>
F23 Cabriolet 2015>
F44 Grand Coupe 2020>
F45 Active Tourer 2014>
F46 Gran Tourer 2015>
F87 M2 Coupe 2015>
3-Serie
E90 Sedan 2005-2011
E91 Touring 2005-2011
E92 Coupe 2005-2011
E93 Cabriolet 2005-2011
F30 Sedan 2011>
F31 Touring 2012>
F34 Gran Turismo 2013>
F80 M3 2014-2018
G20 Sedan 2019>
G21 Touring 2019>
4-Serie
F32 Coupe 2014>
F33 Cabriolet 2014>
F36 Gran Coupe 2014>
F82 M4 Coupe 2014>
F83 M4 Cabriolet 2014>
G22 Coupe 2020>
5-Serie
E60 Sedan 2003-2010
E61 Touring 2003-2010
F07 Gran Turismo 2009-2017
F10 Sedan 2010-2017
F11 Touring 2010-2017
F18 Sedan 2010-2017
G30 Sedan 2017>
G31 Touring 2017>
G38 Sedan 2017>
6-Serie
E63 Coupe 2003-2010
E64 Cabriolet 2004-2010
F06 Gran Coupe 2012>
F12 Coupe 2011>
F13 Cabriolet 2011>
G32 Gran Turismo 2017>
7-Serie
E65 Sedan 2001-2008
E66 Sedan Long Version 2002-2008
F02 Long Version 2008-2015
G12 Long Version 2015>
i8
L15 Roadstar 2013>
X1
E84 SUV 2009-2015
F48 SUV 2015>
F49 SUV Long Version 2015>
X2
F39 SUV 2018>
X3
E83 SUV 2004-2010
F25 SUV 2010-2017
G01 SUV 2017>
X4
F26 SUV 2014-2018
G02FL SUV 2018>
X5
E70 SUV 2006-2013
F15 SUV 2013-2018
F85 SUV 2014-2018
G05 SUV 2018>
X6
E72 2008-2014
F16 SUV 2011-2019
G06 SUV 2014-2019
G07 SUV 2019>
Z4
G29 Roadstar 2018>
Mini
R60 Countryman 2010-2017
R61 Paceman 2012-2016
F54 Clubman 2. genaration 2016>
F55 5-dørs 2014>
F56 3-dørs 2014>
F57 Cabriolet 2016>
